24 inch four head dtf pet film t shirt printer
four head dtf printer
four head dtf printer
four head dtf printer

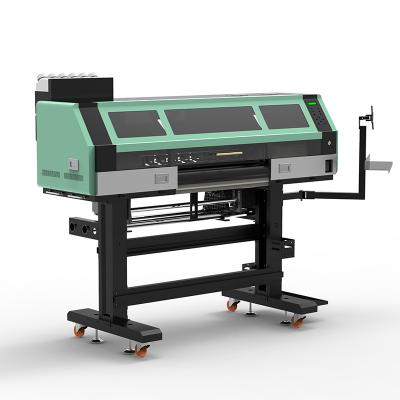

24 inch four head dtf pet film t shirt printer

The 24 inch four head dtf printer with four epson original I3200 print head max speed can reach 25 square meter per hour.If only three print heads are installed, you can switch to a fluorescent colour scheme.

  • Item NO.:

    A6202
  • Color:

    Green
  • Lead Time:

    Delivery In 7 Working Days After payment
  • MOQ:

    1

24 inch four head dtf printer

Product Introduction

1.4 x Epson Original I320 Print Heads,high speed printing

2.Integrated lifting ink stack

3.Print head anti-collision

4.Japan THK guide rail

5.Temperature and humidity

four head dtf film printer

Application of four head dtf printer

24 inch four head dtf printer

Print width 600mm
print media Pet film
Suitable for transfer media Nylon,chemical fiber,cotton,leather,swimsuit,diving suit,PVC,EVA
Print head Dafault I3200*4
Print Configuration Color+White (CMYK*2+WWWW*2)
Printing accuracy 1440/2160/2880dpi
Print speed 16 square meters per hour/6 pass
Print assist Front and rear arc plate heating;Platform suction;White ink circulation&stirring all with ink shortage alarm;Anti collision of nozzle;One key automatic cleaning;Integrated auto-lifting ink station;Built in computer and monitor combined bracket,saving sapce+multi function operation key board
PC assembly function Built in computer and monitor combined bracket,saving place
Automatic lever lifting and paper pressing function One key automatic lifting pressure bar for platform feeding
Paper shortage alarm function Automatic alarm when waste ink bottle is full
Waste ink alarm function Paper shortage alarm during printing,automatic stop printing
Automatic feeding function Automatic tension discharging with probe induction
Platform suction suction adjustable
Print interface Gigabit network port
RIP software Standard PrintFactoty (Maintop optional)
Operating system Windows 7, Windows 10
Temperature and humidity 15-30 Degrees Celsius ,35-65%
Electrical paremeters Rated voltage:50HZ/60HZ,220V,3.6A,110V,7.2A,rated power 800W
Size and Weight Package:1920*1020*715mm, G.W:210KG

Details and Advantage

1.PC assembly function

2.Hoson board

3.Ink shortage aralm+white ink mixing cycle

4.Smart tray

5.Japan THK linear guide rail

6.I3200 four head

7.Peristaltic pump

8.Paper shortage computer software alarm function

9.Touch screen control panel

10.Leiser motor

Advantage of four head dtf printer

Detail of four head dtf printer

Detail of dtf printer four head

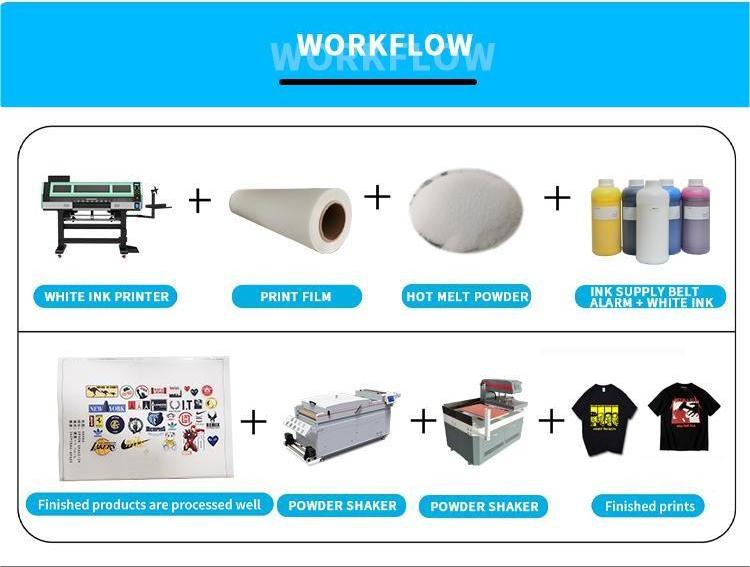

Working Process

1.Design Patten

2.Print Your Design

3.Powdering

4.Hear Press

Workflow of four head dtf printer

What service can we provide for you?

1.One year warranty, life-long after-sales service.

2.Technologist instant online support service.

3.all life after-sale service for free

4: Free trainning is available.

Why choose us

Guangzhou Zhou Surname Intelligent Technology Co., Ltd., established in 2007,based on the advertising and digital printing industry, is a high-quality professional manufacturer of supporting equipment in the industry. Integrating design, research and development, production, and sales, we provide customers with one-stop printer supporting equipment solutions.



     The main products of the company are: Dtf printer.Eco solvent printer , inkjet printer, dryer, SaSiGuang digital printing shaking powder dryer machine, flag fabric sublimation oven machine, smoking filter, paper received feeding system, kilometer thin paper winding machine, 10,000 meters of material winding Machine, various kinds of UV supply ink cartridges, at the same time, we can design and produce supporting equipment according to customer needs......

We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.We will continue to provide competitive printing solutions and services, and continue to create maximum value for our customers. The continuous improvement of our sales network and the increasing quality of our products and service support will help us achieve a win-win situation together with our customers.

Advantage of company

FAQ

Q1.What is the difference between i3200 and 4720 printheads?

A1:i3200 print head is original.has been approved by Epson,more stable.

4720 print head is OEM Used,with decryotion card.

Q2:What operating system do you use, Win 10?

A2:Both win7 and win10 are ok.

Q3:How much of the 60cm film can be printed and how close to the edge can it be printed?

A3:60cm film need to be removed a little bit,Can only be printed to 58-59.

Q4:When I make print files, do I have to save them to the exact size? Or are they adjusted in the software?

A4:The size of the drawing is based on your drawing, and then if it is typesetting, its size will not change. If it has software that changes the size of the typesetting, it can restore the size of its original size picture.

Q5:Do you accept customization?

A5:Yes,we are the factory to accept customization,We also welcome OEM and ODM orders.
